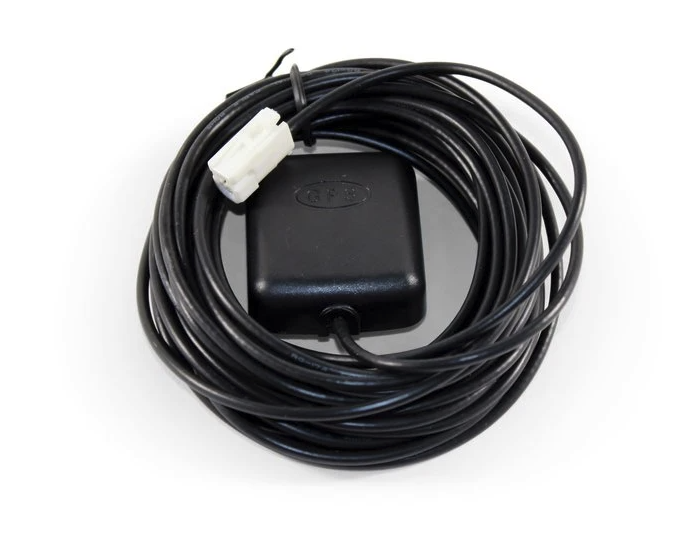

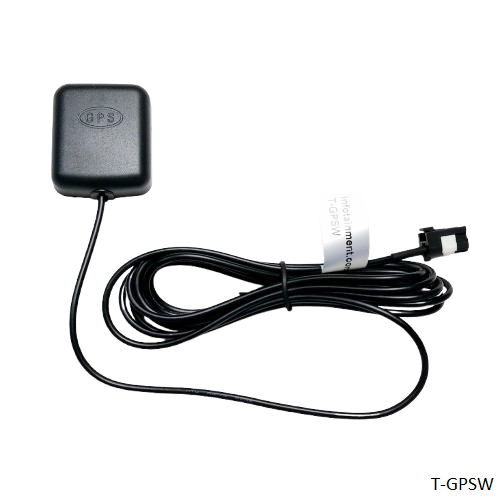

Toyota GPS Antenna

Toyota GPS Antenna

SKU:

Regular price $79.95

 INTRODUCTION

This antenna is designed to install anywhere behind your late model Entune premium GPS navigation radio just beneath your dash top (under your windshield) in clear sight of the sky. It can be mounted & secured with its magnetic base (against any metal object under dash top) or with double-sided tape. Once installed, drive the vehicle to calibrate the system and to link to GPS satellites. If your navigation radio has been programmed correctly, your location should populate automatically.

VEHICLE COMPATIBILITY

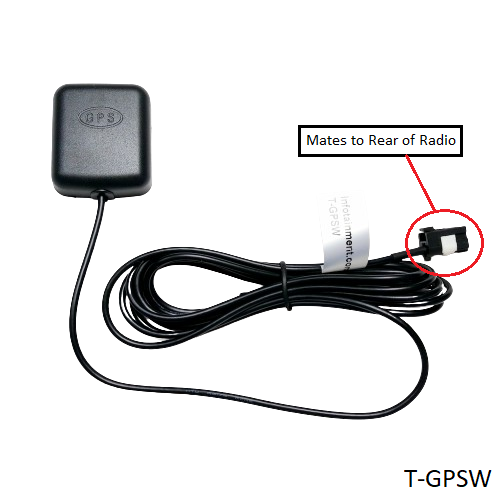

All late model Toyota Entune radios with the white connector port. See photo.

PRODUCT FEATURES

Electrical:
Center Frequency:   1575.42MHz ±3 MHz
VSWR (Voltage Standing Wave Ratio):    1.5:1
Band Width:   ±5 MHz
Impedance:   50 ohm
Peak Gain:    >3dBic Based on 7×7cm ground plane
Gain Coverage:    >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization:    RHCP Antenna


Amplifier:
LNA Gain (Without cable):   28dB Typical
Noise Figure:    1.5dB
Filter Out Band Attenuation:
f0=1575.42 MHZ
7dB Min f0+/-20MHZ
20dB Min f0+/-50MHZ
30dB Min f0+/-100MHZ
VSWR (Voltage Standing Wave Ratio):   <2.0
DC Voltage:   3V to 5V
DC Current:    5mA, 10mA Max


Mechanical:
Weight:    <110 grams
Size:    48×39×14.1mm
Cable:  RG174 2 meters in length
Connector:    White
Mounting:   Magnetic base
Housing:   Black Shell


Environmental:
Working Temperature:    -40℃~ +85℃
Vibration:   Sine Sweep 1g(0-p) 10~50~10Hz each axis
Humidity:    95%~100% RH
Weatherproof:    100%
